- Lightest on-camera system available, minimises camera support issues
- Networks directly to WinPlus-IP for simple integration and perfect synchronisation without a scroll box
- Folding hood design massively reduces setup for time-critical applications and protects glass during transportation
- Optimised mounting kit and hood geometry allowing use of widest lenses on the market (4.3mm)
- No counterbalance needed for almost all camera/lens configurations, further reducing the weight
- 4 integrated tally lights, giving 270 degrees of visibility around the teleprompter
- Integration of CLOCKPLUS-IP clock and camera ID display (not included) creates attractive time, tally, camera ID solution
- Upgrade to EPIC-IP with addition of ETM
- Intelligent Prompting mounting system for rapid setup and guaranteed lens/prompt monitor alignment
An Intelligent evolution in broadcast prompting
The new EVO-IP prompt monitor is the slimmest broadcast prompt monitor available, with a depth of just 41.5mm. The sleek 19” monitor is perfect for productions looking for a large but still lightweight solution.
As an Intelligent Prompting device, the monitor includes IP connectivity and scroll engine functionality so that it can connect directly to the WinPlus-IP software application via an IP network; displaying smooth scroll prompter video without the need for an additional scroll engine. HD-SDI and Composite inputs are also included. A new rear panel for all connections improves cable management, and the integral back plate houses a quick release mechanism that allows rapid attachment/detachment of the monitor to/from the Intelligent Prompting mounting system.

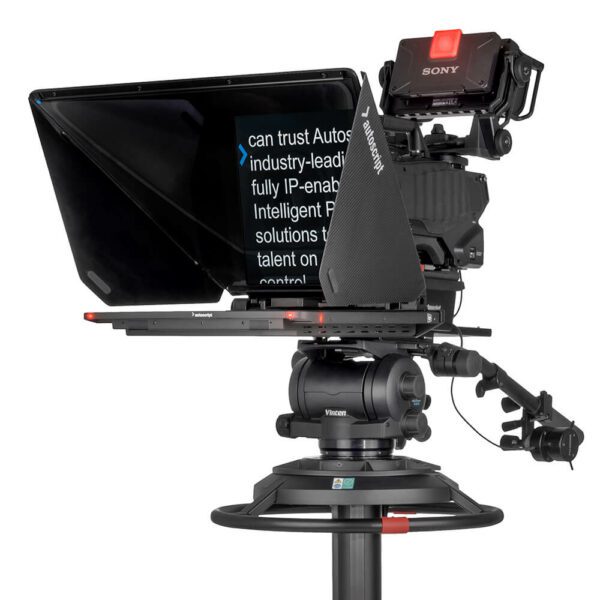

The EVO-IP on-camera system comes with Autoscript’s new Intelligent Prompting mounting and carbon fibre hood. The complete monitor, hood and mounting assembly has been carefully calculated to minimise the number of parts, vastly improve setup time and reduce the lens opening at the back of the hood. The lens is sealed using a flexible ring, giving greatly improved access for direct control via hand grip, or for connection of pan bar z/f control.
The CLOCKPLUS-IP time code, tally and camera number display (not included), can be simply attached to the front of the EVO-IP, giving an attractive, unified appearance. The EVO-IP accepts the widest choice of time inputs available including Network Time Protocol and D-VITC.
The EVO-IP offers a high-bright, high-contrast solution in a smart new package. It ensures the script is clearly readable in any light while improving setup time and integration into modern broadcasts.
- Size: 19″
- Monitor only weight: 3.9 kg / 8.6 lb
- On-camera package weight: 11.5 kg / 25.4 lb
- Aspect Ratio: 4.3
- Brightness: 1500 nits
- Resolution: 1280 x 1024 SXGA
- Contrast 1000:1
- Script Inputs: LAN, 2x HD-SDI, 2x CVBS
- Tally Input: Opto Sensor
- Timecode Inputs: LTC, NTP (VITC, D-VITC optional)
- Power consumption: 29W
- Power Input: 4-pin XLR, 12-16.8VDC
- Outputs: Repeat Tally Output inc. 12V DC Out
- Viewing Angle: H/V 170 Degrees/160 Degrees
- Dimensions: 467 x 399 x 41mm / 18.4 x 15.7 x 1.6″
- Mounting: On-camera system with Intelligent Prompting backplate, carbon fibre hood and glass, rail and mounting bracket
- Certifications: CE, FCC, BIS [registration no. R-41145165], RoHS
- EVO-IP19: 19″ high-bright prompt monitor (EVO-IP19M); carbon fibre hood and glass; mounting system and camera carriage assembly to suit ENG cameras and camcorders; Tally sensor and cable; cable tray
- EVO-IP19M: 19″ high-bright prompt monitor package; Tally sensor and cable; PSU
BIS article number DCA19XVIP1N
