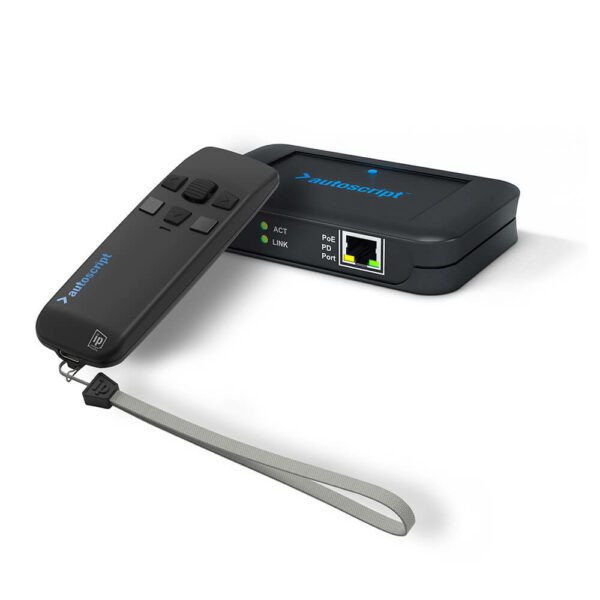

Wireless Controller & Base Station Package

The wireless controller and base station package is a complete solution for untethered control of a prompted script within WinPlus-IP.
The WC-IP is a bespoke wireless scroll control developed specifically for prompting and has been optimised for on-screen talent operation of the script. Its compact design sits discretely in the palm of the hand and has a forward/ reverse joystick that intuitively scrolls the text.

The WC-IP features three story navigation buttons and two programmable function buttons for enhanced operation, where the talent needs more control options.  All buttons are managed within WinPlus-IP and can be enabled/disabled/assigned when required.
Designed for use in busy studios, the WC-IP is quickly configured and paired with a base station (WB-IP) within WinPlus-IP.  The long-life battery can also be monitored in WinPlus-IP as well as via a discreet LED status display on the control itself and is recharged using a standard USB-C cable.  Each WC-IP connects with a single WB-IP base station and will maintain connection over a distance of up to 100m/300ft, to ensure even the largest productions and the most mobile on-screen talent enjoy uninterrupted smooth scroll of the script at all times.

Product Details

Intelligent Prompting wireless controller (WC-IP) and base station (WB-IP) package

  • Allows total freedom for the presenter to move around a studio and control the speed of the prompted text


  • Scroll control: Single axis thumb actuated joystick (up/down) with centre bias
  • Function buttons: Next Story, Previous Story, Top of script, Function 1 (programmable), Function 2 (programmable)
  • Power: Integrated rechargeable battery with USB-C charging port
  • Operating hours between charges: 100 hrs (continuous use)
  • Status display: Single RGB LED (wireless connection, battery life, and charging status)
  • Wireless range: 100m (300ft)
  • Operating Frequency: 2.4GHz
  • Dimensions: 120 x 40 x 20mm (4.75 x 1.6 x 0.8”)
  • Weight: 70g (0.15lb)


  • Dimensions: 25 x 73 x 116mm (1 x 2.9 x 4.6”)
  • Weight: 150g  (0.3lb)
  • Connector: RJ45
  • Wireless Range: 100m (300ft)
  • Power: 3W Max power consumption
  • Indicators: RGB Status LED (power and wireless connection status), Ethernet Data LED, Ethernet Link LED
