Home > Products > WinPlus-IPS

WinPlus-IPS

WinPlus-IPSView More ImagesView More ImagesView More Images

Product Specification

  1. Overview
  2. Features
  3. Specification
  4. What's in the Box?

WinPlus-IPS (WP-IPS) is a simple but powerful application ideally suited for single operator productions.


Designed with corporate, educational and government productions in mind, the software employs many of the features of WinPlus-IP, including the modern customisable user interface, super smooth scroll preview and live script editing.

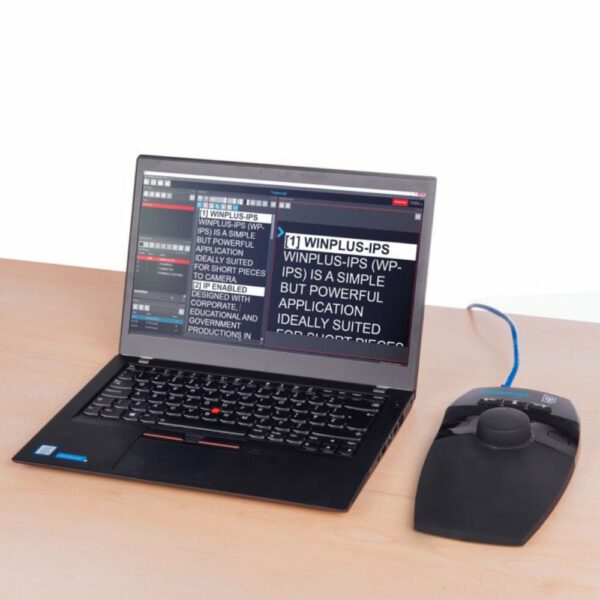

WinPlus-IPS will connect over an IP network to a single controller. An HC-IP desktop hand control is supplied with the software, and optional foot and wireless hand controllers are also compatible. Any number of EVO-IPS monitors and XBox-IP scroll engines can be connected. The device status tool enables monitoring and management of the devices, including firmware updates and configuration of EVO-IPS monitors.


Simplified menus presented above the relevant content area, make the software easy to navigate. Multiple run orders can be loaded for multi-script content, while specialist features such as newsroom connectivity and closed caption generation have been removed for simplicity


  • Simple but powerful application that supports a fully IP-enabled workflow
  • Intuitive and fast operation with simple menus
  • Familiar word processing application shortcuts and hotkeys promote quick operation
  • Familiar processes for existing WinPlus users, avoids the downtime and errors associated with learning a new system
  • Customisable user interface allows operators to define the layout and colour of the application, and pin content tiles to sidebar when not required.
  • Super smooth scroll real time preview ensures a clear overview of what the talent is reading
  • Intelligent Prompting device manager enables users to add, monitor, group and update networked prompting devices remotely
  • Support for multi-language operation
  • Minimal data transfer required vs baseband video
  • Instant connectivity globally

Minimum system requirements

  • Operating System: Windows 7 or later
  • 32 Bit and 64 Bit OS supported
  • Hard Drive: 1GB of free disk space
  • RAM: 4GB
  • Processor: i3
  • Graphics: Graphics card supporting OpenGL 3 for smooth preview/VGA prompting

Application

  • Connects automatically to Intelligent Prompting devices on the connected IP network (only one controller will connect at any time)
  • In-screen real time scroll preview
  • Simple customisable user interface: resizable windows, colour selection, content tile position, content tile pin to sidebar, tabbed windows
  • Script edits during live prompting
  • Multi language support
  • Word & RTF Import
  • Graphical scroll control

Run Order

  • Options: add story, remove story, cloak story, drop story, scroll to prompter, track live story
  • Available run order preview
  • Drag and drop story

Story Editor

  • Options: font type, font size, font format, font colour, background colour, spell check, cut & paste
  • Script matches prompt mode to indicate prompt output
  • Follow prompter
  • Font resize slider

Prompter Preview

  • Super smooth scroll
  • Options: on-screen message, invert colours, blank screen
  • Presenter preferences

Device Management

  • Status: add manual, add discovered, monitoring
  • Configuration of EVO-IPS: brightness, contrast, image flip
  • Remote program of scroll control function buttons
  • Remote software and firmware updates

Compatibility

  • HC-IP desktop scroll control (included), FC-IP foot control (not included), Wireless hand control (not included)
  • EVO-IPS monitors, EVO-IP monitors, including EPIC-IP systems (no monitor included, no XBox-IP required)
  • XBox-IP scroll engine (not included, produces dual HD-SDI output)
  • WINPLUS-IPS: (stand alone) software application; A9009-0002: HC-IP desktop scroll control
